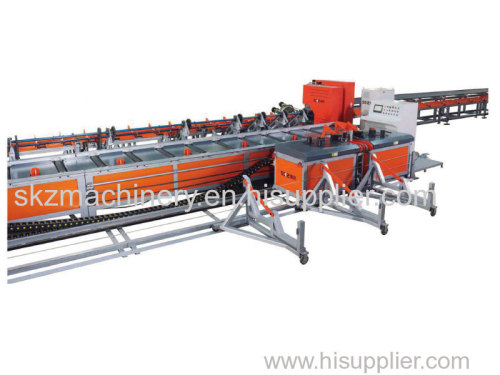

INTEGRATED REBAR SHEAR & BENDING LINE,Easy operation Integrated Rebar Cutting,Intergrated Rebar Shear,Rebar Sawing Easy operation Integrated Rebar Cutting Intergrated Rebar Shear Rebar Sawing Model KQW50X Shearing part Max Shear Foree (KN) 1750 Co Model KQW50X Shearing part Max Shear Foree (KN) 1750 Conveying Speed(m/min) ≤60 Max Steel Strength (MPa) 570 Cutting Langth (mm) Manual 800-12,000 mm Automatic 1500-12,000 mm Culling Capacity (φ)(mm) 10 12 14 16 18 20 22 25 28 32 36 40 No.(235Mpa) 17 14 12 11 9 8 8 5 5 4 2 2 No.(400Mpa) 15 12 11 9 8 7 7 5 4 3 2 2 Average Pewer Consumption (KW/h) 9 Shearing Machine size (mm) 25000*3500*2000 Bending part Conveying speed 40 (m/min) Bending speed 6-8r/min Benders no° 2 Mobile bender move method Automatic Power consumption 10 (kwh) Min. bending side length (distance between 2 mandrels) 1200 (mm) Accuracy ol bending angle ±1° Conveyor load capacity 1000 (KG) Power supply voltage 380V/50Hz/3phase TotaL power 30 (kw) Total weight 8.8 (M.T.) Bars diameter 10 12 14 16 20 25 28 32 40 50 Bending bars no° 7 6 5 5 4 3 3 2 1 1 STRUCTURE & CHARACTERS 1.BAR STORAGE TABLE Suitable for maximum steel bar length 12m. Maximum carrying capacity 1,500Kg. 2. FEEDING TRACK 12-m long feeding tracks consisting of motorized rollers Length could be specially designed 3. CUTTING MACHINE Pneumatic-mechanical cutting head. 175 tons cutting capacity. Width of cutting blade: 300mm. Cutting frequency: 22 times/min. 4.MEASURING AND TRANSFER TRACK 12-m gauging and transfer tracks consisting of motorized rollers Servo motor drived length measuring system. 3 measuring system to maximize the gauging speed. 5.COLLECT POCKETS 3 storage pockets at each side. Pneumatically operated, automatic stack. 6.CONNECTING RACK Connect the rebar shear line to bender 7.Horizontal bending center 1 mobile bender 1 fixed bender Servo motor driven Pneumatically operated lifting device, delivery straight bars to bending mandrel and transfer shaped bars to storage rack. Pneumatically operated clamp device will fix the steel bars while bending. Shaped bars storage rack. 8. ELECTRIC CABINET AND CONTROL CONSOLE Touchable screen display. Optimized software, less scrap. Trouble shooting program to detect any failure or problem.
